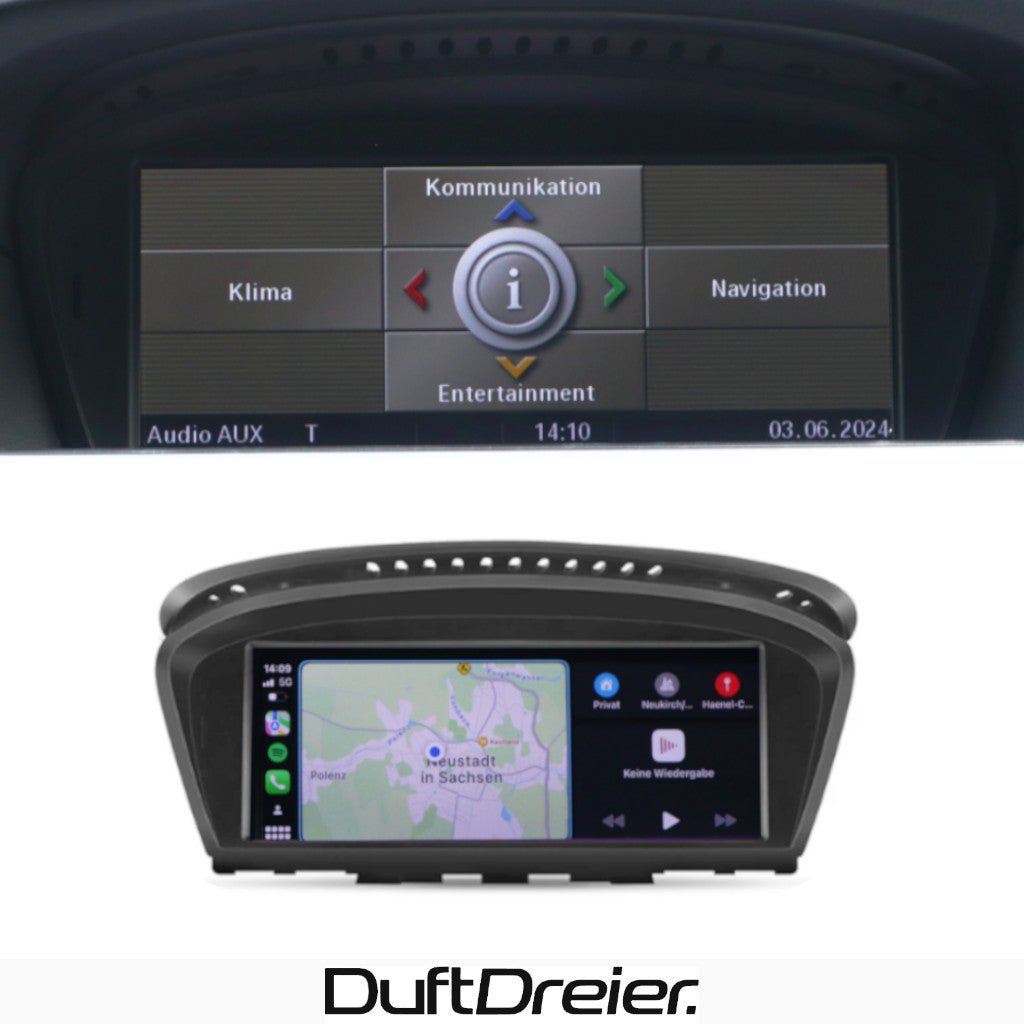

Instructions for CCC (for BMW 3 Series E90/E91/E92/E93 5 Series E60/E61)
This manual refers to our navigation system. We cannot guarantee that this manual will be helpful for other models.
Click here to go to the DuftDreier Linux Navi:
Important: This guide is constantly being updated. If you have any questions or suggestions for improvement, please contact us at:
Mail: info@duftdreier.de
Instructions for CCC:
Here is the video tutorial:
1. Before installation
2. Loosen both screws of the navigation screen
3. Gently pry the screen forward
4. Carefully remove the screen
5. Disconnect the LVDS and power connectors.
The screen is no longer needed.
6. Remove the middle interior trim, starting on the right
Tools: https://duftdreier.com/products/innenraum-montagewerkzeug
7. Remove the entire bar
8. Disconnect the hazard warning light unit
Now the interior trim must be removed
9. Remove the screws of the climate control panel
Left and Right
10. Carefully loosen the climate control panel
11. Now remove all plugs from the control panel
12. The panel underneath is carefully levered from both sides and thus released
13. Remove the 4 screws behind the cover
14. Remove the cable from the screen and the power cable
15. Now lay the new wiring harness
16. Now connect the Linux screen
17. The screen can now be inserted into the tunnel, start by inserting the retaining lugs at the bottom
18. IMPORTANT: The optic cable must be unplugged from the original connector (this will be plugged back into the new connector later)
19. Connect the old (original) plug to the new plug
20. Now the optic cable is pinned into the new connector (simply plugged in)
21. The new connector (with optic cable) is now connected to the CCC computer
22. VERY IMPORTANT: Now plug the supplied AUX cable into the AUX IN socket
23. Under Settings the correct original system must be selected (important for switching to the original system)
24. Now a comprehensive functional test is carried out
25. Dismantling in reverse order
